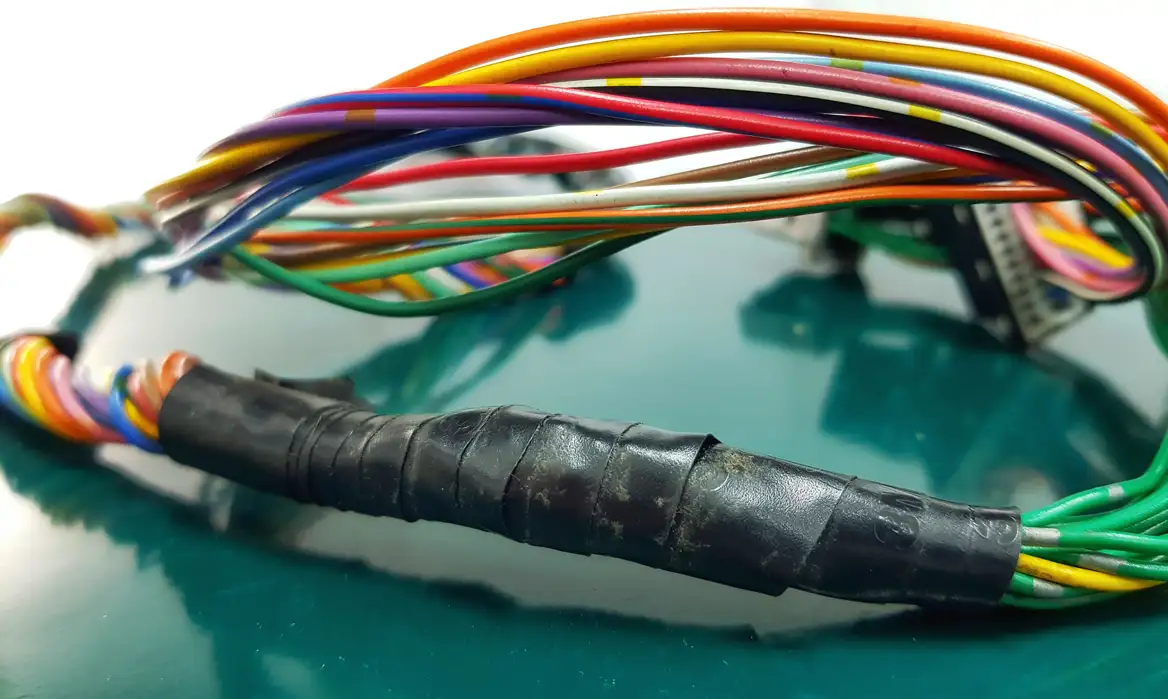

Wiring harnesses—bundles of wires, connectors, and terminals designed to transmit electrical power and signals—are vital components in industries ranging from automotive and aerospace to industrial equipment and consumer electronics. Although they may appear simple, wiring harnesses are typically custom-engineered and must meet precise electrical, mechanical, and environmental requirements. With growing product complexity and supply chain disruption risks, sourcing wiring harnesses strategically is more important than ever. Inadequate sourcing can lead to production delays, quality failures, or even product recalls. Tenet Consulting has extensive experience helping clients source everything from the simplest single point-to-point connections to complex harnesses with 500+ wires.
Custom vs. Off-the-Shelf Solutions
- Off-the-Shelf: Suitable for generic or non-critical applications. These solutions are faster to procure but limited in flexibility.
- Custom Harnesses: Required for most OEM applications, especially where packaging constraints, performance, or compliance are involved. Custom harnesses necessitate close collaboration with engineering and a vendor capable of prototyping and low-volume builds before scaling to mass production.
Engineering Alignment – Technical Specifications
Before engaging suppliers, it’s essential to have clear technical specifications for the wire harness. Understand voltage and current requirements, connector and terminal specifications, exterior protection type, and regulatory compliance needs. Clear drawings, 3D models, and BOM lists are necessary to receive accurate quotations from suppliers.
Engineering Alignment – Component Selection
Having a clear desired future state for wire harnesses within the organization is vital. All engineering design teams should follow a similar playbook regarding component selection. Commonization of components can lead to better volume pricing and simplify sourcing and inventory management. The customer experience team should be consulted regarding any aesthetic or service requirements from customers, typically related to exterior protection.
Exploring Directed Buy Opportunities
If an organization has a clear strategy for component selection, this opens the door for potential negotiations directly with tier 2 suppliers of components like connectors. By negotiating exclusivity deals with connector suppliers, companies can achieve cost reductions and establish supply prioritization agreements.
Evaluate and Qualify Suppliers Thoroughly
A wiring harness supplier should not be just a contract manufacturer—they must be a technical partner. Evaluate vendors based on:
- Industry Certifications: ISO 9001 (quality), IATF 16949 (automotive), IPC/WHMA-A-620 (wire harness workmanship).
- Engineering Support: Can they assist with design for manufacturability (DFM) and recommend cost-saving changes?
- Manufacturing Capabilities: Automation, crimping, testing, labeling, and traceability systems.
- Geographic Footprint: Proximity to your manufacturing site reduces lead times, while global partners offer scalability and cost advantages.
- Financial Stability: Wiring harnesses are long-term parts in many products; supplier continuity is critical.
Balancing Cost, Quality, and Lead Time
Wiring harness costs are influenced by:
- Material Selection: Wire gauge, insulation, and connector brands.
- Labor Intensity: Manual assembly and testing can be costly in high-wage countries.
- Volume and Batch Sizes: Larger orders typically reduce per-unit costs.
To manage costs without sacrificing quality:
- Standardize components across models when possible.
- Use LCC (low-cost country) suppliers for mature harnesses.
- Negotiate long-term agreements with volume commitments to lock in pricing.
Plan for Testing, Quality Control, and Traceability
Every wiring harness should be tested for:
- Continuity
- Short circuits
- Insulation resistance
- Connector insertion force and retention
Ensure your supplier has automated test benches and inspection protocols in place. Look for advanced testing capabilities such as:
- Hi-pot (high potential) testing
- Environmental testing (thermal cycling, salt fog, vibration)
- Serialization and digital traceability
Mitigating Supply Chain Risk
The wiring harness industry is vulnerable to:
- Copper price volatility
- Connector shortages
- Labor disruptions in low-cost manufacturing hubs
To de-risk:
- Dual-source critical harnesses.
- Pre-qualify alternate connectors that can be swapped in an emergency.
- Maintain buffer stock on long-lead-time parts or key subassemblies.
Conclusion: Wiring Harness Sourcing Is Strategic, Not Tactical
Wiring harnesses may not be glamorous, but they are crucial to the products they connect. A delayed harness can halt an entire assembly line, while a faulty one can trigger product failures in the field. Good harness sourcing practices enable companies to ensure quality, manage costs, and maintain delivery schedules.
